C Series 3x3 / 3x6 / 5.2x5.2 Positive Pressure Tactile Switch

Tactile Switch TS-C005033 – 4×4×1.5mm Copper Square Type

Inquire Download PDF
PREV：Tactile Switch TS-C010003, 2×4×3.5mm, Side Push TypeNEXT：TS-C026001 2*4 Recessed-Mount Tactile Switch
Technical Parameters Drawings
Rated Current： 50mA 12V DC
Contact Resistance： 100mΩ
Travel： 0.2±0.05mm
Insulation Resistance： 100MΩ
Withstand Voltage： 250v 50Hz 1Min

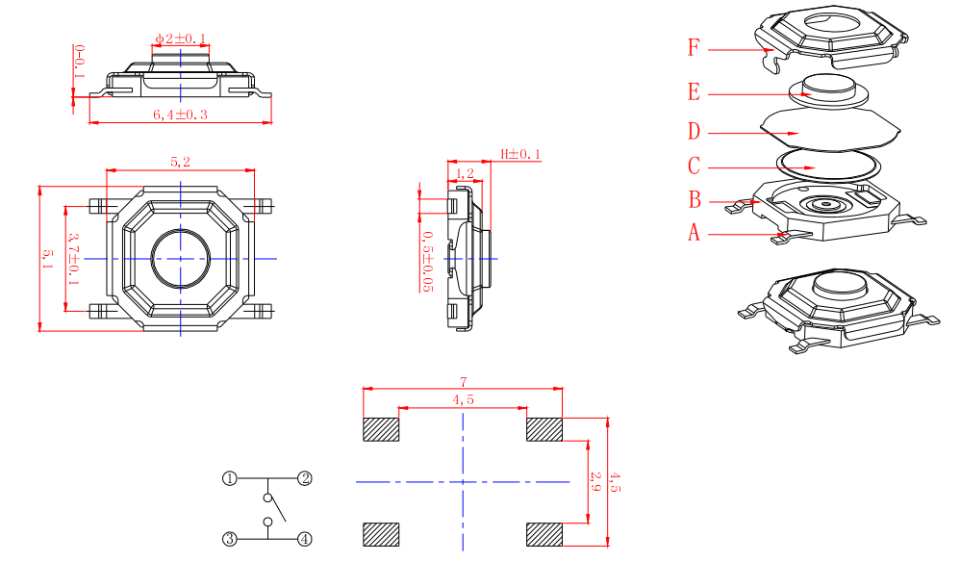

Dimensions Circuit Diagram
PCB Layout
