  • TS-B010063 3*4*1.8 4-Pin Small Turtle Tactile Switch with Plum-Shaped Actuator
  • TS-B010063 3*4*1.8 4-Pin Small Turtle Tactile Switch with Plum-Shaped Actuator
B Series 3x4 Positive Pressure Tactile Switch

TS-B010063 3*4*1.8 4-Pin Small Turtle Tactile Switch with Plum-Shaped Actuator

Inquire Download PDF
PREV：TS-B013005A 3*5*2.6 Small Recessed-Mount Tactile SwitchNEXT：TS-B010044 2.75*3*1.4 4-Pin Tactile Switch
Technical Parameters Drawings
Rated current: 50 mA, 12 V DC
Contact resistance: 100 mΩ
Travel: 0.2 ± 0.05 mm
Insulation resistance: 100 MΩ
Dielectric strength:  250 V, 50 Hz, 1 min

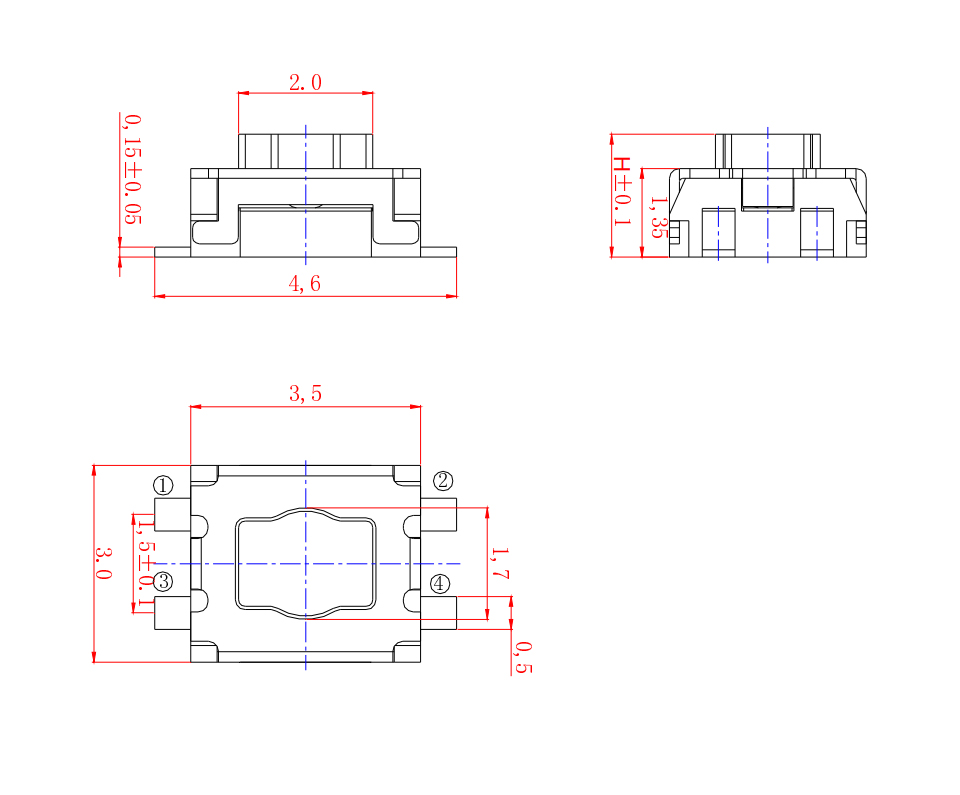

Dimensions Circuit Diagram

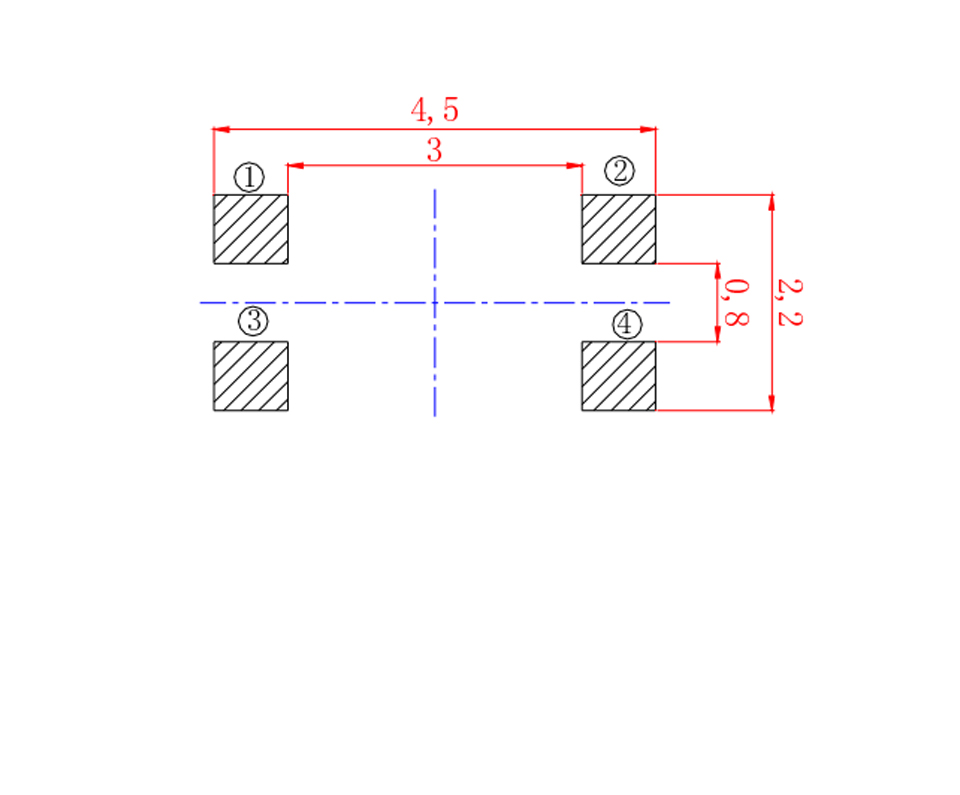

PCB Layout
