Home · Products · Tactile Switch · B Series 3x4 Positive Pressure Tactile Switch · TS-B007005 3*4 4-Pin Medium Turtle Side-Actuated Tactile Switch
  • TS-B007005 3*4 4-Pin Medium Turtle Side-Actuated Tactile Switch
  • TS-B007005 3*4 4-Pin Medium Turtle Side-Actuated Tactile Switch
B Series 3x4 Positive Pressure Tactile Switch

TS-B007005 3*4 4-Pin Medium Turtle Side-Actuated Tactile Switch

Inquire Download PDF
PREV：No previous articleNEXT：TS-B010065 2.75*3*1.4 Grounded-Cover Tactile Switch
Technical Parameters Drawings
Rated current:  50 mA, 12 V DC
Contact resistance:  100 mΩ
Travel:  0.25± 0.1mm
Insulation resistance:  100 MΩ
Withstand voltage:  250 V, 50 Hz, 1 min

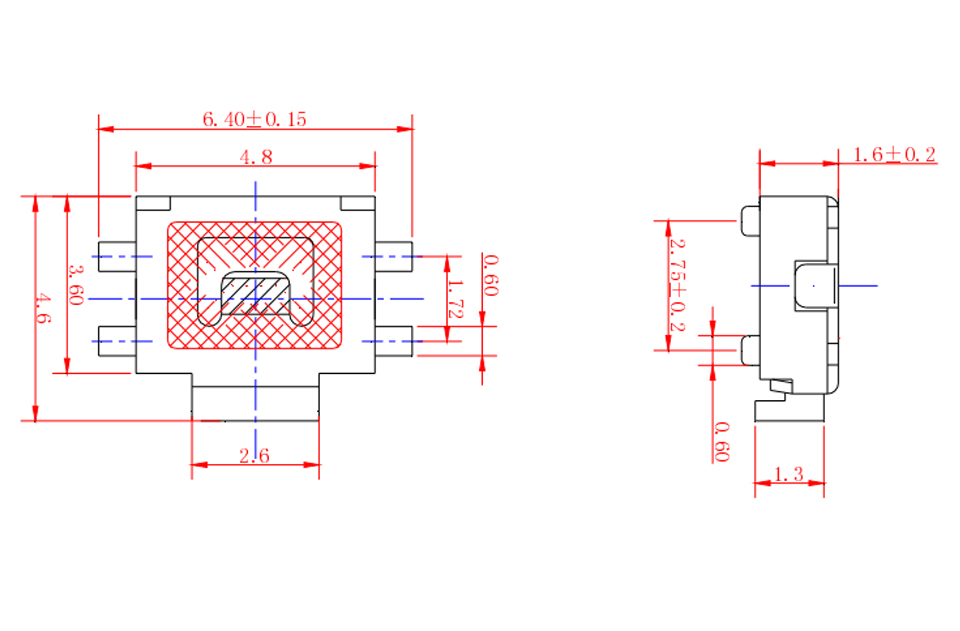

Dimensions Circuit Diagram

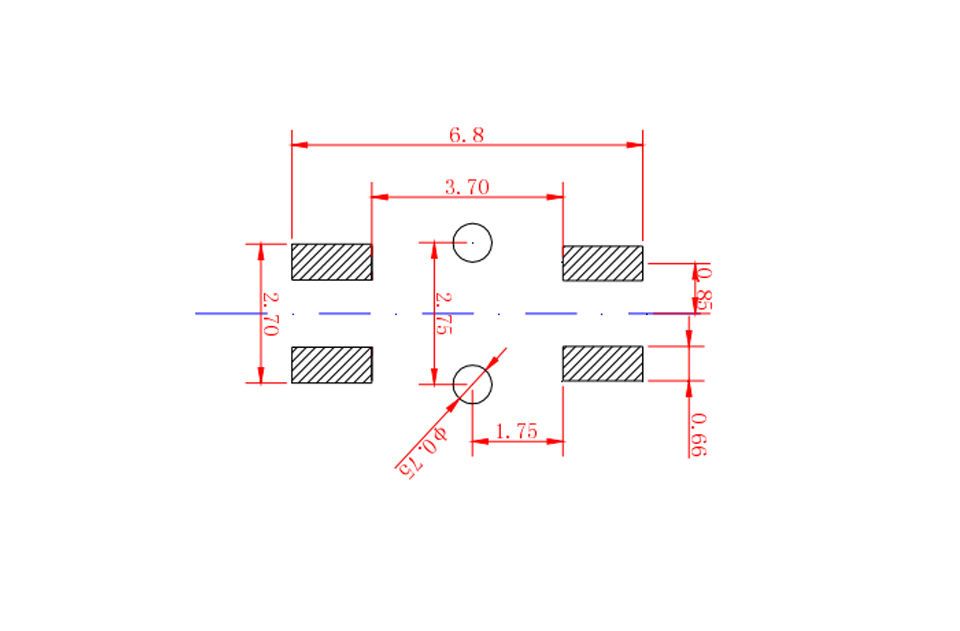

PCB Layout
