A Series Ultra-Thin Tactile Switch

TS-A020003 6*6*0.9 Enclosed-Pin 260g 2-Step Camera Type Tactile Switch with Post

Inquire Download PDF
PREV：TS-C001066A 2*3*0.65 Yellow Film Headset/Membrane Tactile Switch Type with DotNEXT：No next article
Technical Parameters Drawings
Rated current: 50 mA, 16 V DC
Contact resistance: 100 mΩ
Actuation force: 350 ± 70 gf
Travel: 0.72 ± 0.3 mm
Insulation resistance: 100 MΩ
Lifespan: 200,000 cycles

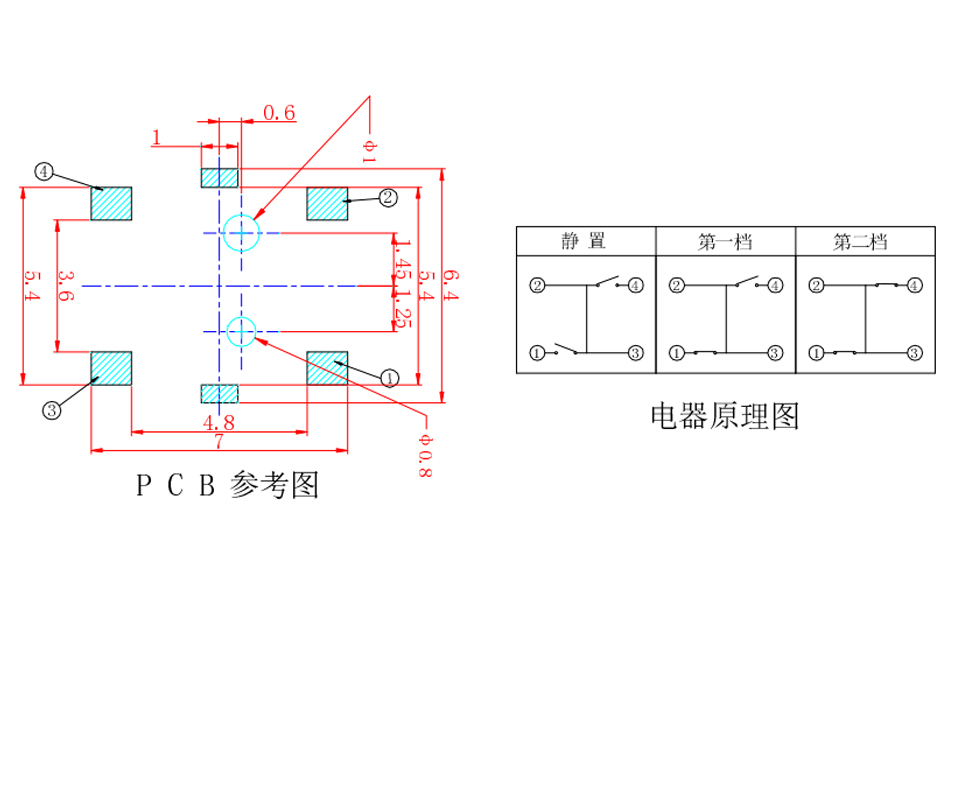

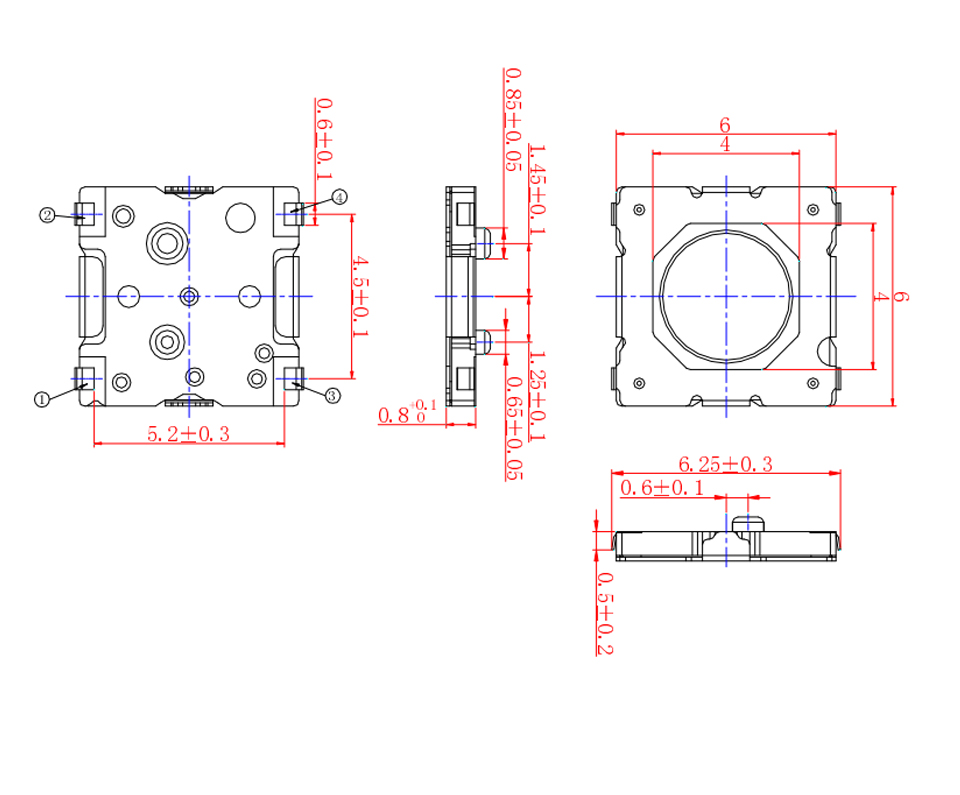

Dimensions Circuit Diagram
PCB Layout
