A Series Ultra-Thin Tactile Switch

TS-A009004 4.5*4.5*0.55 Flat-Pin Headset/Membrane Type Tactile Switch

Inquire Download PDF
PREV：TS-A005039 3.7*3.7*0.35 Flat-Pin High Tactile Feel Headset/Membrane Type Tactile SwitchNEXT：TS-C001066A 2*3*0.65 Yellow Film Headset/Membrane Tactile Switch Type with Dot
Technical Parameters Drawings
Rated current:  50 mA, 12 V DC
Contact resistance:  100 mΩ
Travel:  0.25± 0.1mm
Insulation resistance:  100 MΩ
Withstand voltage:  250 V, 50 Hz, 1 min

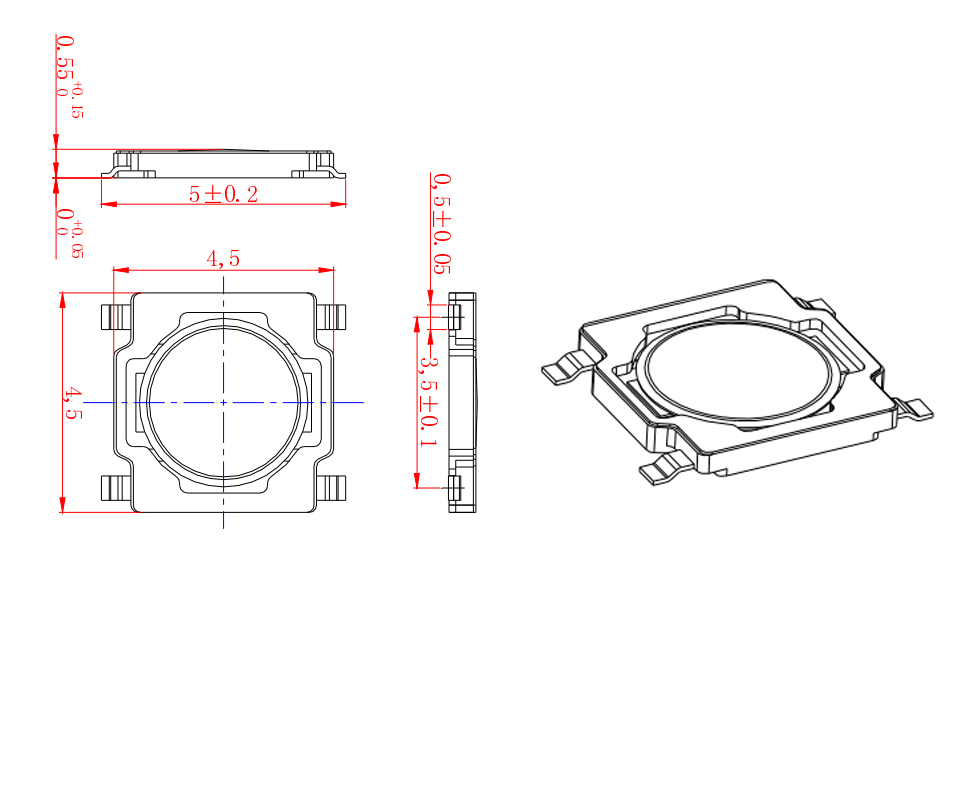

Dimensions Circuit Diagram

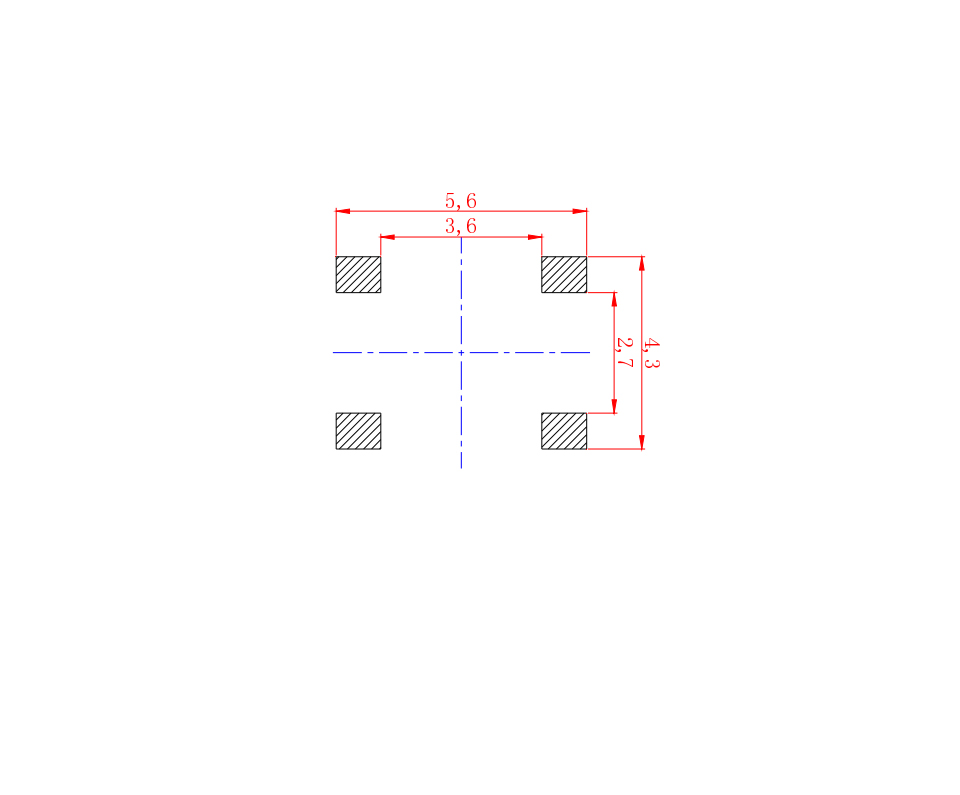

PCB Layout
