A Series Ultra-Thin Tactile Switch

TS-A001002 2*3*0.5 Flat-Pin Yellow Film Headset/Membrane Type Tactile Switch No Dot

Inquire Download PDF
PREV：TS-C021011 4*4*0.8 Capless Headset/Membrane Type Tactile SwitchNEXT：TS-A005006 3.7*3.7*0.35 U-Pin Tactile Switch Headset/Membrane Type
Technical Parameters Drawings
Rated current:  50 mA, 12 V DC
Contact resistance:  100 mΩ
Travel:  0.15± 0.05mm
Insulation resistance:  100 MΩ
Withstand voltage:  250 V, 50 Hz, 1 min

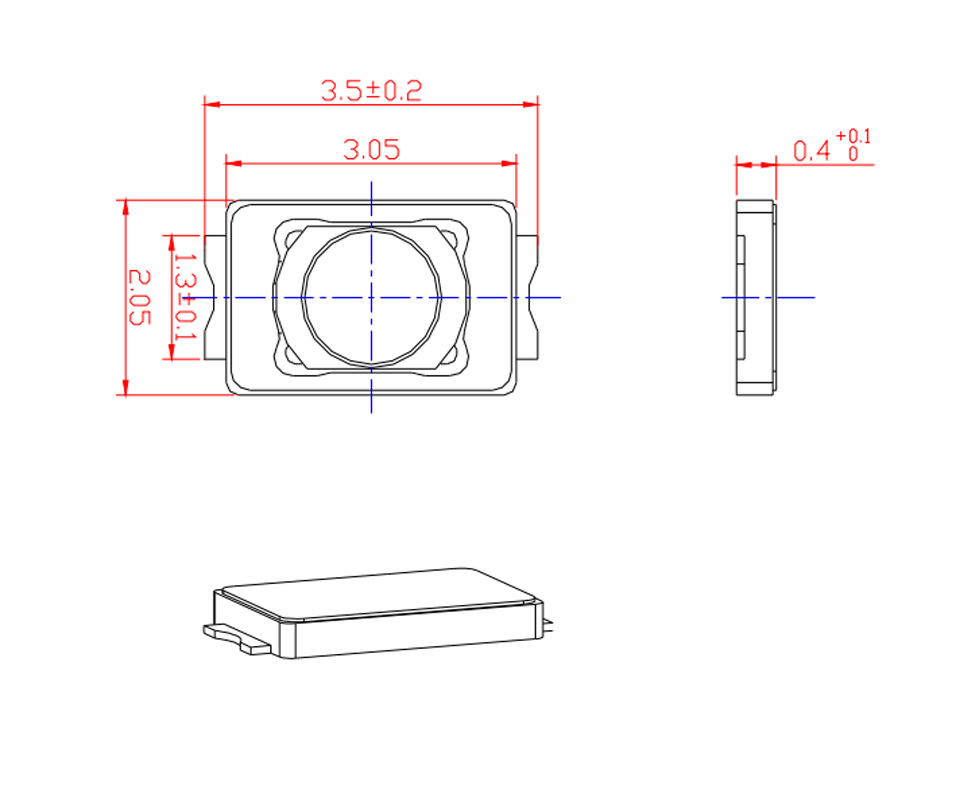

Dimensions Circuit Diagram

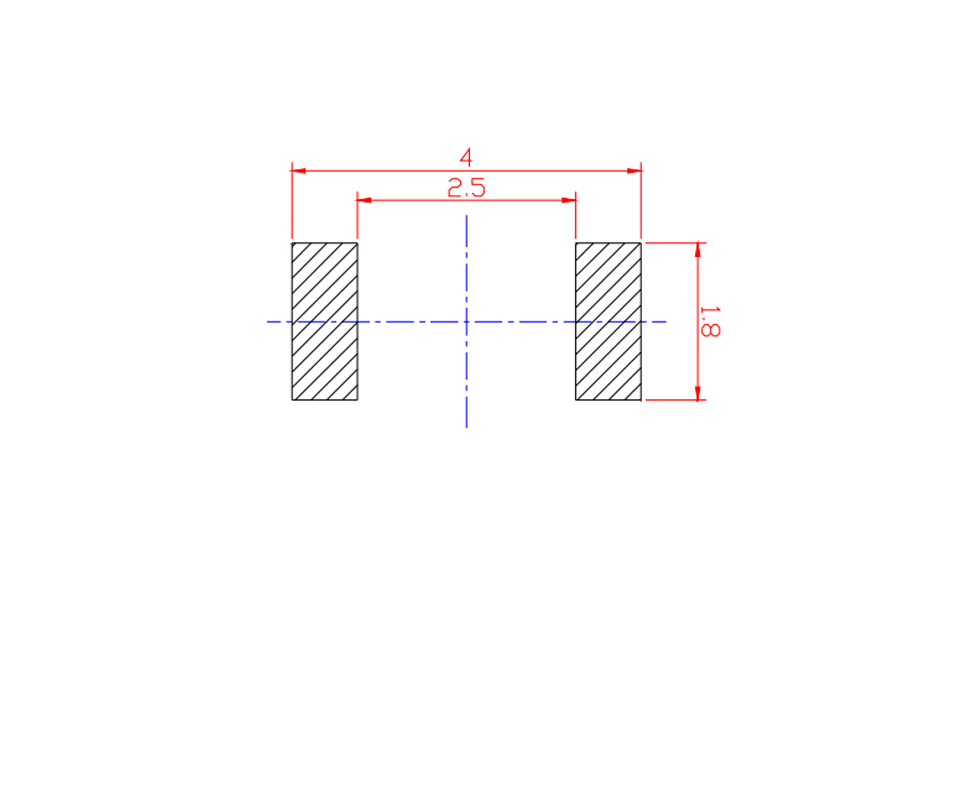

PCB Layout
